Brake Disc Gear Couplings

Description

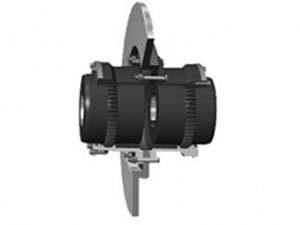

Brake disc gear coupling is made up of an annular gear with the same tooth number and flange half coupling with external teeth. Drum gear means the external teeth is made into spherical surface. Brake disc is rigidly connected with the right shaft sleeve. In the braking process, brake load and vibration are borne by the right sleeve, thus there is no damage to the meshing performance of drum gear.

Application
Brake disc gear coupling is suitable for connecting two coaxial driving shafts.

Features
1. Curved tooth gear coupling with brake disc has simple structure and is convenient in installation.
2. Brake disc gear coupling allows larger angular displacement when compared to straight tooth coupling.
3. Diameter of the brake disc is 315 to 1000 mm and the nominal torque is 0.71 KN.m to 160 KN.m.

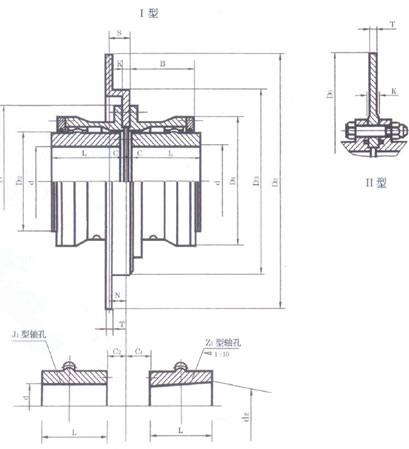

Dimensions

Notes
1. Weight and rotational inertia of brake disc are not included. For more information about it, please refer to table 2.
2. C, C1 and C2 are calculated by adding K/2 to different brake discs.
3. N = S - K/2. Value in the table is calculated according to the maximal value of D0. For S and K, please refer to table 2.

Parameters of Brake Disc Gear Coupling

Model	Nominal Torque Tn /N.m	Limited Rotational Speed [n] /(r·min)	Shaft Hole Diameter d1, d2, dz	Shaft Hole Length L		D0	D	D2	D4	B	F	N	R	C	C1	C2	Weight (kg)	Rotational Inertia (kg·m²)	Grease Consumption (kg)
				Y	J1, Z1
WGP1	710	4000	12, 14	32	-	315	122	98	60	58	30	38	2	30	-	-	5.62	0.0078	0.11
			16, 18 , 19	42	-									20	-	-
			20, 22 , 24	52	-									10	-	-
			25 , 28	62	44									3	19	18
			30, 32, 35, 38	82	60										23	12
			40, 42	112	84										29	12
WGP2	1250	4000	22, 24	52	-	315	150	118	77	68	30	38	2.5	20	-	-	9.62	0.022	0.12
			25, 28	62	-									10	-	-
			30, 32, 35, 38	82	60									3	23	16
			40, 42, 45, 48, 50, 55, 56	112	84										29
WGP3	2500	3550	22, 24	52	-	355	170	140	90	80	30	49	3	33	-	-	16.6	0.047	0.2
			25, 28	62	-									23	-	-
			30, 32, 35, 38	82	60									3	23	25
			40, 42, 45, 48, 50, 55, 56	112	84										29	16
			60, 63	142	107										36
WGP4	4500	2500	30, 32, 35, 38	82	-	400 450 500	200	160	112	90	30	45	3	13	-	-	25.3	0.098	0.28
			40, 42, 45, 48, 50, 55, 56	112	84									3	29	17
			60, 63, 65, 70, 71, 75	142	107										36
			80	172	132										41
WGP5	7100	2500	30, 32, 35, 38	82	-	400 450 500	225	180	128	100	30	45	4	23	-	-	34.7	0.174	0.45
			40, 42, 45, 48, 50, 55, 56	112	84									3	29	19
			60, 63, 65, 70, 71, 75	142	107										36
			80, 85, 90	172	132										41
WGP6	10000	2000	32, 35, 38	82	-	450 500 560 630	245	200	145	112	30	44	4	35	-	-	51.3	0.293	0.65
			40, 42, 45, 48, 50, 55, 56	112	-									5	-	-
			60, 63, 65, 70, 71, 75	142	107										38	20
			80, 85, 90, 95	172	132										43
			100												48
WGP7	14000	1700	32, 35, 38	82	-	450 500 560 710	272	230	160	122	30	44	4	45	-	-	68	0.53	0.8
			40, 42, 45, 48, 50, 55, 56	112	-									15	-	-
			60, 63, 65, 70, 71, 75	142	107									5	38	20
			80, 85, 90, 95	172	132										43
			100, 110	212	167										48
WGP8	20000	1700	55, 56	112	-	450 500 560 710	290	245	170	136	30	44	5	29	-	-	79	0.71	0.95
			60, 63, 65, 70, 71, 75	142	107									5	38	34
			80, 85, 90, 95	172	132										43	20
			100, 110, 120, 125	212	167										48
WGP9	25000	1600	65, 70, 71, 75	142	107	560 630 710 800	315	265	190	140	30	58	5	5	38	38	106.5	1.05	1.3
			80, 85, 90, 95	172	132										43	28
			100, 110, 120, 125	212	167										48
			130, 140	252	202										53

We implement strict quality control system and perfect testing system in order to ensure the quality of brake disc gear coupling. Curved tooth gear coupling with brake disc has won widespread praise and recognition by customers both home and abroad.
